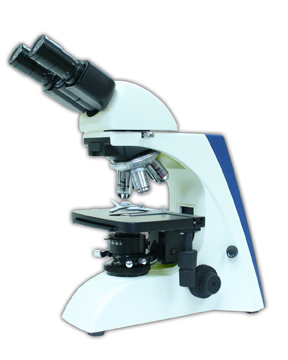

Seiler Microlux IV Dual View Compound Microscope

The Microlux IV is Seiler’s most versatile compound microscope with optional video or digital configurations as well as Phase Contrast, LED, Simple Polarization, and MOH's for Dermatology procedures. It has five Infinity Corrected Plan Objectives: 4x, 10x, 20x, 40x, 100x for sharper images and virtually no aberrations. Several objective configurations are also available for different magnification needs.

  • Infinite Plan objectives (5 pieces): 4x, 10x, 20x, 40x, 100x
  • Seidentopf Type Binocular head, 30º inclined, 360º rotation
  • Rotatable Kohler Illumination System: Halogen 12V - 20 W (LED illumination also available)
  • Eyepiece: WF10x / 20 mm
  • Interpupillary Adjustable distance is 50 - 75 mm
  • Coaxial Coarse and Fine Focusing control
  • Diopter Adjustable range ± 5°
  • Nosepiece: Reversed Quintuple click-stop revolving mechanism with multiple ball bearings
  • Condenser: Abbe Type N.A.=1.25 with Iris Diaphragm Double layer mechanical stage with removable slide holder, 190 x 140 mm
  • Travel stage area 78 x 55 mm with a right-hand stage handle
  • Anti-Fungal System
  • 110V-240V Universal Power Supply
  • Limited Lifetime Warranty
Product NumberProduct NamePriceBuy
115-MLX817-DV Seiler Microlux IV Dual View $3,295.00 Each
